Apache Spark for Beginners - Chapter 1.1 : Configure Spark Web UI in Local

2 min readJun 28, 2020

Objective

Configure the Spark Web UI in your local environment.

Prerequisites

Chapter 1: Install Spark on you local

cd /usr/local/Cellar/apache-spark/3.0.0/libexec/conf

1.2 Copy the spark-defaults.conf template

cp conf/spark-defaults.conf.template conf/spark-defaults.conf

1.3 Add these values

cat <<EOT >> conf/spark-defaults.conf
# Options for the daemons used in the standalone deploy mode
spark.master http://localhost:7077
spark.eventLog.enabled true
spark.eventLog.dir file:///tmp/spark-events
spark.history.fs.logDirectory file:///tmp/spark-events
EOT

2. Configure spark-env.sh

2.1 Copy the spark-env.sh.template

cp conf/spark-env.sh.template conf/spark-env.sh

2.2 Add the below values

cat <<EOT >> conf/spark-env.sh
# Options for the daemons used in the standalone deploy mode
SPARK_MASTER_HOST=localhost
SPARK_MASTER_PORT=7077
SPARK_MASTER_WEBUI_PORT=8080
SPARK_LOCAL_IP=localhost
EOT

3. Start the spark daemons

cd $SPARK_HOME./sbin/start-all.sh
./sbin/start-history-server.sh

3.1 Spark Web UI URLs

Master Node : http://localhost:8080/

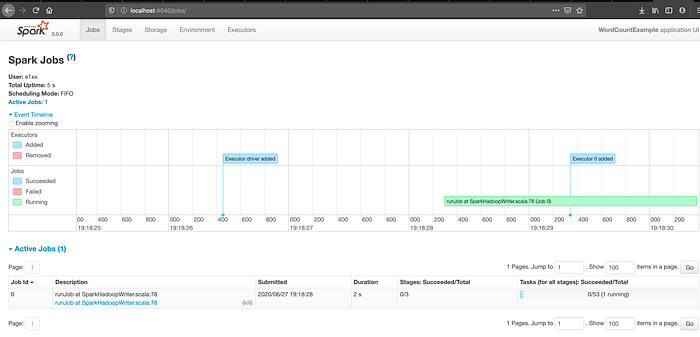

Spark Job Node: http://localhost:4040/

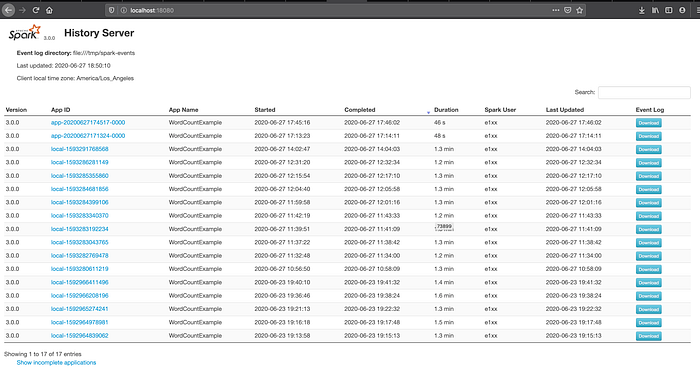

History Server : http://localhost:18080/

3.2 Run an example

Clone the project spark-poc, build and run

Refer Chapter 1 for setting up and running a Spark application in local

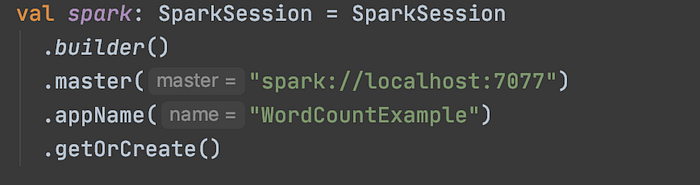

Ensure the master is set to spark://localhost:7077

cd $SPARK_HOME./bin/spark-submit --class dev.template.spark.WordCount  \
                --master spark://localhost:7077 \
                --driver-memory 2g \
                --executor-memory 2g \
                --executor-cores 4 \
                /Users/e1xx/repos/spark-scala-gradle-bootstrap/build/libs/spark-scala-gradle-bootstrap-2.12.0-all.jar \
                /Users/e1xx/repos/spark-scala-gradle-bootstrap/src/test/resources/wordcount_intput.txt \
                /tmp/wordcount/WordCount_$(date +%F_%T)
